4MATIC GLOBAL VALVE AUTOMATION is a well-known brand in India for manufacturing high-quality Butterfly valve since 2005. We for the most part focus on the supply of a wide range of valves into the procedure business and can design and manufacture one-off solutions to meet particular client necessities. We pride ourselves on the specialized information which we have picked up since our origination and we are certain we supply a valve or control solution to fit any procedure condition. 4matic Global is a professionally managed organization having certified ISO 9001:2000 by Bureau Veritas Quality International with UKAS accreditation and having CE marking for Butterfly Valves.

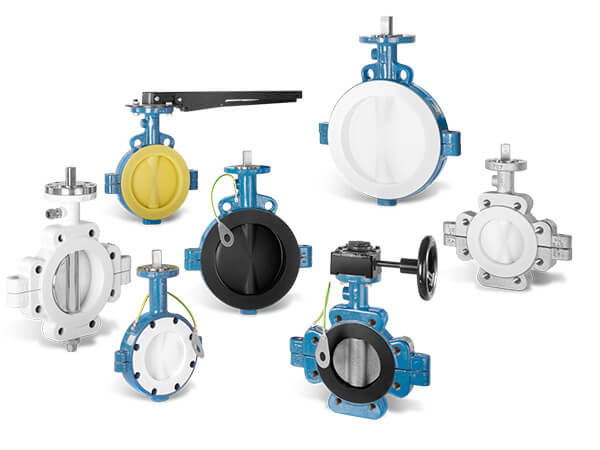

A valve consisting of a rotating circular plate or a pair of hinged semicircular plates attached to a transverse spindle and mounted inside a pipe to regulate the flow. The butterfly valve consists of only four main components: body, disk, stem and seat. Butterfly valves generally have bodies that fit between two pipe flanges, the most common being lug and wafer body design. The disk in the butterfly valve stops the flow, which is equivalent to a plugin, a plug valve, a gate in a gate valve or a ball in a ball valve. There is a variation in disk design and orientation to improve flow, sealing and/or operating torque.
The stem of the butterfly valve might be a one-piece shaft or a two-piece (split-stem) design. The stem in most adaptable seated designs is protected from the media, in this manner permitting an efficient choice of material regarding cost and mechanical properties. The seat of a flexible seat butterfly valve uses impedance fit between the plate edge and the seat to give shutoff. The material of the seat can be produced using a wide range of polymers. The seat might be attached to the body or it might be squeezed or secured.
There are various types of butterfly valves, each adjusted for various pressure and distinctive utilization. The zero balance butterfly valve, which utilizes the adaptability of elastic, has the least weight rating. The superior two-fold balance butterfly valve, utilized as a part of somewhat higher-pressure systems, is counterbalanced from the inside line of the plate seat and body seal (balance one) and the middle line of the drag (balance two).
This makes an activity amid an operation to lift the seat out of the seal bringing about less grating than is made in the zero counterbalance design and declines its inclination to wear. The valve most appropriate for high-pressure systems is the triple balance butterfly valve. In this valve, the plate situates contact pivot is counterbalanced, which acts to for all intents and purposes take out sliding contact amongst circle and seat. On account of triple balance valves the seat is made of metal so it can be machined, for example, to accomplish an air pocket tight close off when in contact with the plate.

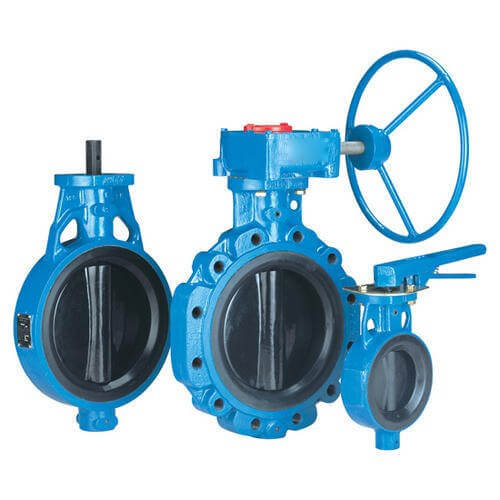

We at, 4Matic Global Valves are considered to be the leading manufacturer and supplier of Butterfly Valves. Our offered butterfly valves are manufactured under the guidance of experienced experts with many types of faults. The butterfly valves are generally utilized for clean and slightly contaminated, inert and corrosive media as well as low cycle duties. The butterfly valves are utilized in waterworks, sewage treatment plants and inventory stocking applications.
These valves are operated like other quarter-turn valves. Further understanding the way, a basic butterfly valve works are pretty simple. These butterfly valves are made of several components. The metal disc is commonly referred to as the butterfly. These valves are mounted on a rod and when the valve is closed it blocks the passage of fluid. When the valve is fully open, the metal disc or butterfly moves a quarter turn. The passageway is unrestricted allowing fluids or air to pass.
Generally, the development of the plate will rely upon whether the valve is open or closed either in part or totally. If the valve is opened halfway, it implies that the plate won't be pivoted an entire one-quarter turn; subsequently, it can't give an unhindered section. This implies littler measures of liquid or air will go through. However, if the valve is opened totally, the circle will be turned 90 degrees then larger amounts of air or fluid will go through.
Butterfly valves are easy and fast to open: A 90° rotation of the handle gives an entire conclusion or opening of the valve. Expansive Butterfly valves are typically outfitted with a supposed gearbox, where the handwheel by gears is associated with the stem. This simplifies the operation of the valve, however to the detriment of speed.
Unique Features of Butterfly Valves
4MATIC GLOBAL VALVE AUTOMATION’s main motto is business performance. Flourished with huge team members having years of experience in this domain, who understand, from straight awareness, the challenges of running and growing an organization. Working on the research and global best practices makes sure that it can deliver original workable solutions to help meet those challenges.
